LMCF-L Linear Bushing

Home>> Linear Bearings>>Linear Bearings >> LMCF-L Linear Bushing

LMCF-L Linear Bushing

LMCF-L Linear Bushing

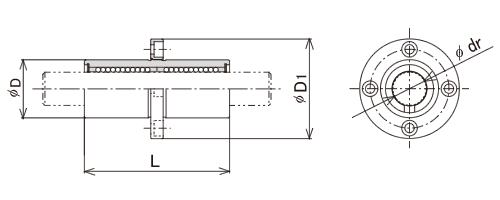

Drawing

Datasheet

Model No.				Main dimensions
	Inscribed bore diameter			Outer diameter		Length		Flange	diameter
	dr	Tolerance		D	Tolerance	L	Tolerance	D₁	Tolerance
		Precision	High		Precision/High
	mm	mm	mm	mm	mm	mm	mm	mm	mm
LMCF 6L	6	—	—	12	0	35	±0.3	28	0
					-0.013				-0.2
LMCF 8L	8	—	—	15	0	45	±0.3	32	0
					-0.013				-0.2
LMCF 10L	10	—	—	19	0	55	±0.3	39	0
					-0.016				-0.2
LMCF 12L	12	—	—	21	0	57	±0.3	42	0
					-0.016				-0.2
LMCF 13L	13	—	—	23	0	61	±0.3	43	0
					-0.016				-0.2
LMCF 16L	16	—	—	28	0	70	±0.3	48	0
					-0.016				-0.2
LMCF 20L	20	—	—	32	0	80	±0.3	54	0
					-0.019				-0.2
LMCF 25L	25	—	—	40	0 -0.019	112	±0.3	62	0 -0.2
